Credit Card Fraud Detection with Random Forest & XGBoost

import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sns

from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
from sklearn.ensemble import RandomForestClassifier
from sklearn.metrics import (
    confusion_matrix, precision_recall_curve,
    average_precision_score, roc_auc_score, f1_score
)
from xgboost import XGBClassifier
from imblearn.over_sampling import SMOTE

# Publication-style charts — seaborn-v0_8 provides a subtle grid
# and clean typography without the raw matplotlib defaults.
plt.style.use("seaborn-v0_8")
sns.set_context("talk", font_scale=0.9)
PALETTE = {"Normal": "#2ecc71", "Fraud": "#e74c3c"}

df = pd.read_csv("creditcard.csv")

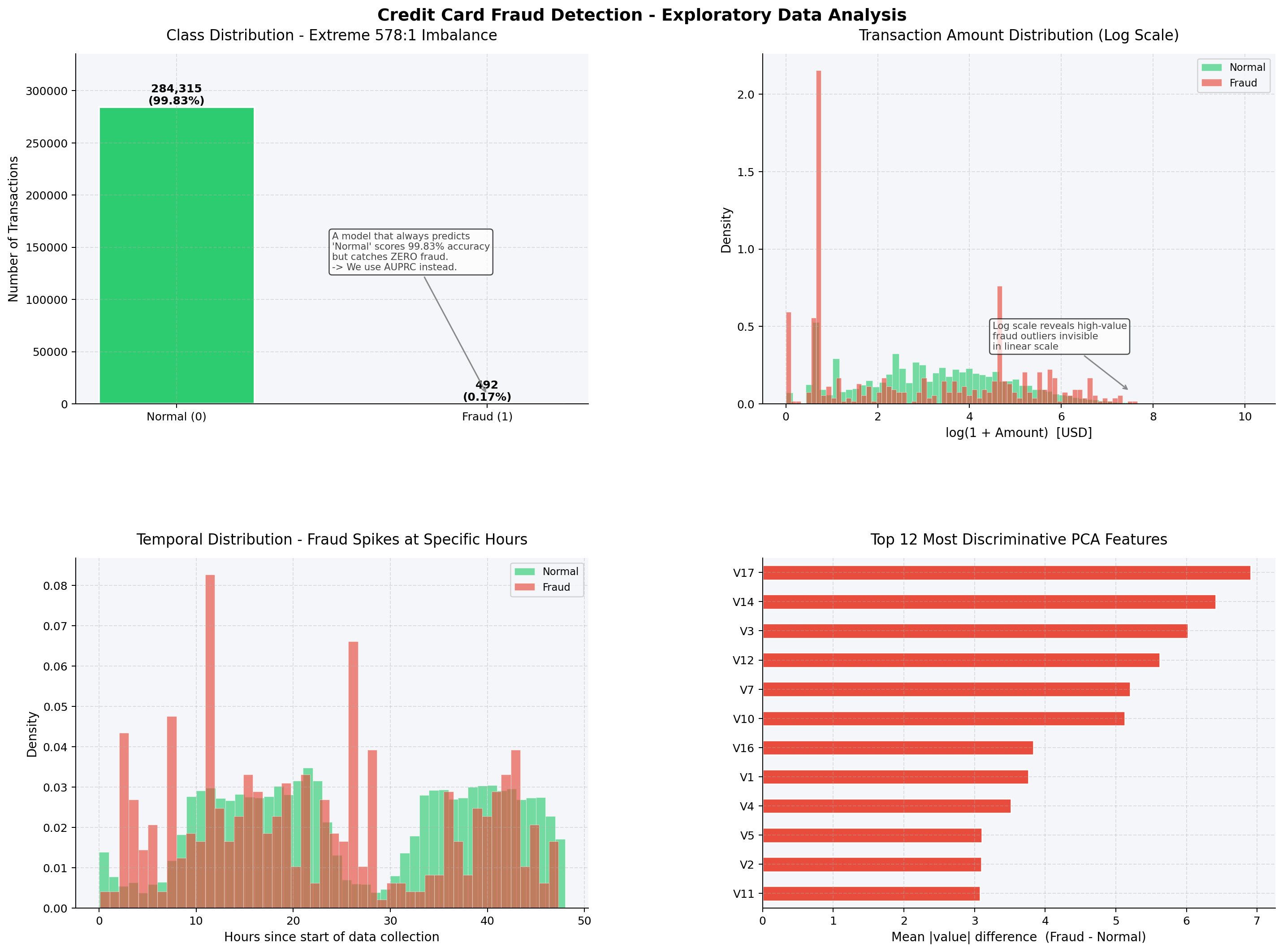

class_counts = df["Class"].value_counts()
class_pct    = df["Class"].value_counts(normalize=True) * 100

# Result: Normal = 284,315 (99.83%)  |  Fraud = 492 (0.17%)
# A naive classifier that predicts "Normal" every time achieves 99.83%
# accuracy — but catches ZERO fraud. This is why accuracy is useless
# here. We use AUPRC (Area Under the Precision-Recall Curve) instead,
# which focuses entirely on the minority class.
print(f"Class imbalance ratio: {class_counts[0] / class_counts[1]:.0f}:1")

# Why RobustScaler instead of StandardScaler?
# StandardScaler computes mean +/- std. A single $25,000 fraud transaction
# skews both statistics heavily. RobustScaler uses median + IQR, which are
# resistant to extreme outliers — exactly what fraud data contains.
scaler = RobustScaler()

# V1–V28 are already PCA-scaled. Only Amount and Time need normalization.
df["Amount_scaled"] = scaler.fit_transform(df[["Amount"]])
df["Time_scaled"]   = scaler.fit_transform(df[["Time"]])
df.drop(["Amount", "Time"], axis=1, inplace=True)

X = df.drop("Class", axis=1)
y = df["Class"]

# stratify=y ensures the 0.17% fraud rate is preserved in both
# train and test sets — without this, the test set could have no fraud.
X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, random_state=42, stratify=y
)

# Strategy A — Class Weights (built into the model):
# The simplest and most leak-proof approach. The model applies a higher
# penalty to misclassifying the minority class. No synthetic data generated.
rf_weighted = RandomForestClassifier(class_weight="balanced", ...)

# Strategy B — SMOTE (Synthetic Minority Oversampling Technique):
# Generates synthetic fraud samples by interpolating between real neighbors.
# CRITICAL: SMOTE is applied ONLY on the training set. Applying it before
# splitting would leak information from the test set into training data.
smote = SMOTE(random_state=42)
X_train_smote, y_train_smote = smote.fit_resample(X_train, y_train)

# Before SMOTE: {0: 227,451  |  1: 394}
# After  SMOTE: {0: 227,451  |  1: 227,451}  — perfectly balanced

neg_count  = (y_train == 0).sum()
pos_count  = (y_train == 1).sum()
scale_pos  = neg_count / pos_count   # ≈ 578

xgb_model = XGBClassifier(
    n_estimators=300,
    max_depth=6,
    learning_rate=0.05,
    scale_pos_weight=scale_pos,   # XGBoost's equivalent of class_weight
    reg_alpha=0.1,                # L1 regularization
    reg_lambda=1.0,               # L2 regularization
    eval_metric="aucpr",          # optimize for AUPRC during training
    random_state=42,
    n_jobs=-1
)

def evaluate_model(model, X_tr, y_tr, X_te, y_te):
    model.fit(X_tr, y_tr)
    y_pred  = model.predict(X_te)
    y_proba = model.predict_proba(X_te)[:, 1]

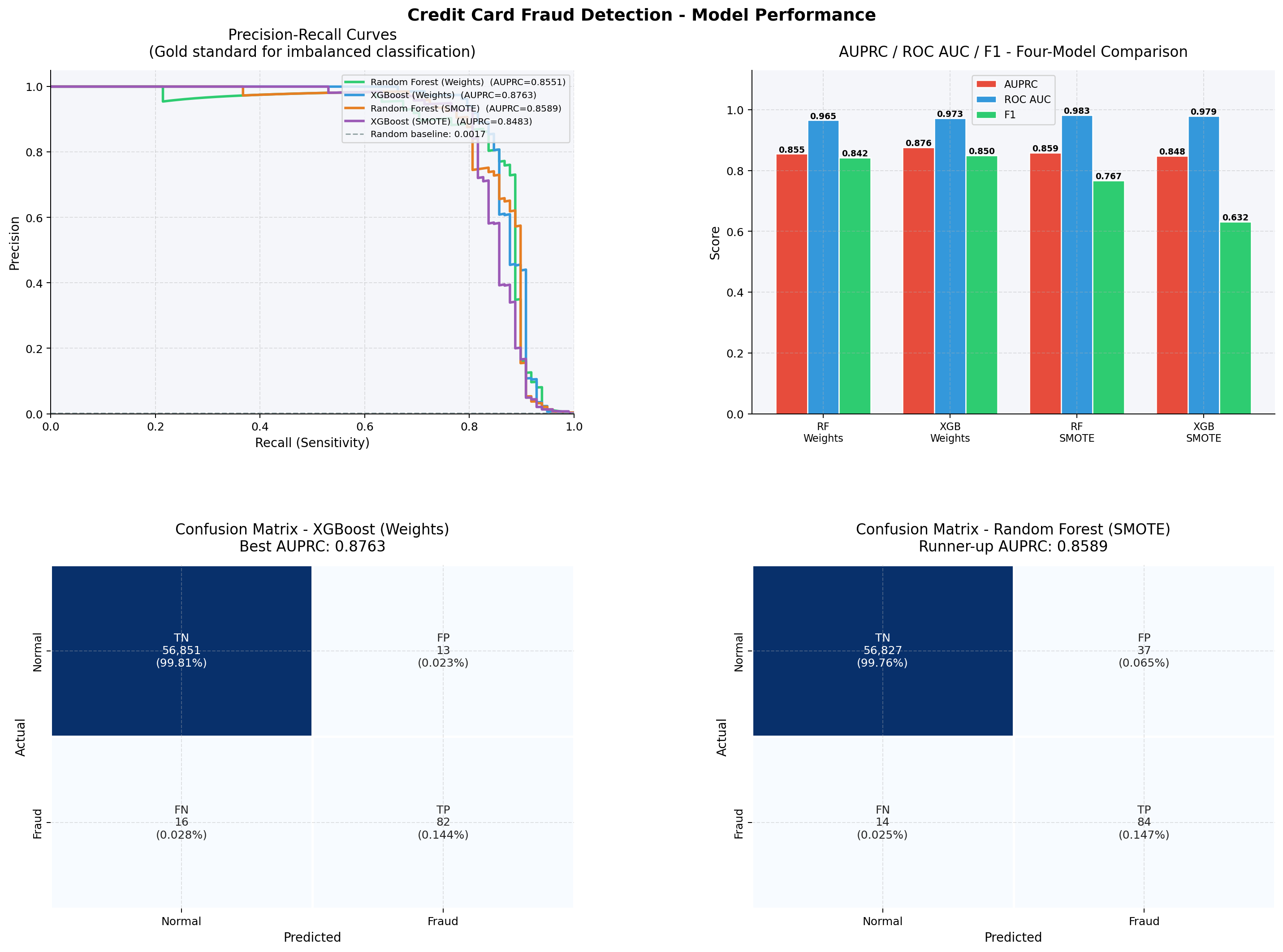

    # AUPRC is the gold standard for imbalanced datasets.
    # ROC-AUC can be misleadingly optimistic because the huge negative
    # class dilutes the false-positive rate. PR curves only look at
    # the minority class, which is exactly what we care about.
    auprc = average_precision_score(y_te, y_proba)
    roc   = roc_auc_score(y_te, y_proba)
    f1    = f1_score(y_te, y_pred)
    cm    = confusion_matrix(y_te, y_pred)
    return auprc, roc, f1, cm

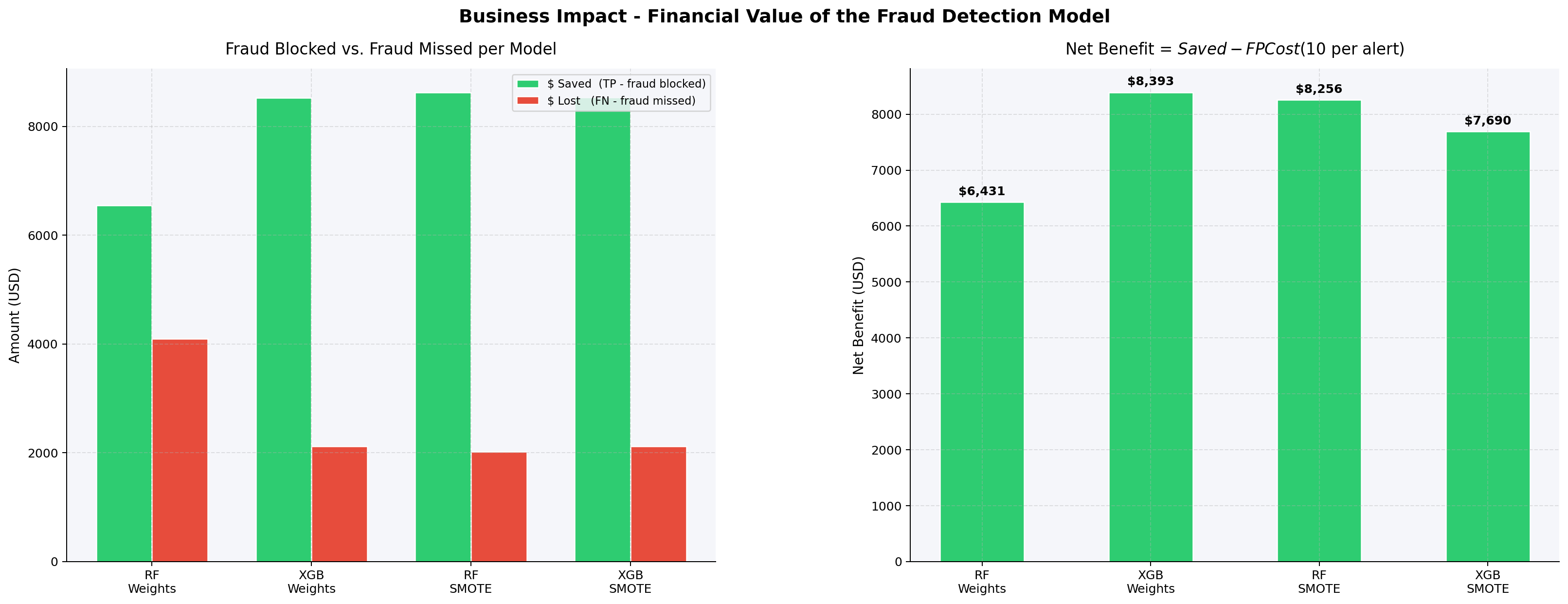

COST_PER_FP = 10  # USD — cost of a false alarm (SMS, call center, temp block)

for name, res in results.items():
    tp_mask    = (y_test.values == 1) & (res["y_pred"] == 1)
    fn_mask    = (y_test.values == 1) & (res["y_pred"] == 0)

    money_saved = amount_test[tp_mask].sum()   # fraud correctly blocked
    money_lost  = amount_test[fn_mask].sum()   # fraud that slipped through
    fp_cost     = res["cm"][0, 1] * COST_PER_FP

    net_benefit = money_saved - fp_cost
    print(f"{name}: saved ${money_saved:,.2f} | lost ${money_lost:,.2f} | net ${net_benefit:,.2f}")
